Stone Column Design in Wagga Wagga: Improving Soft Ground Beneath the Riverina

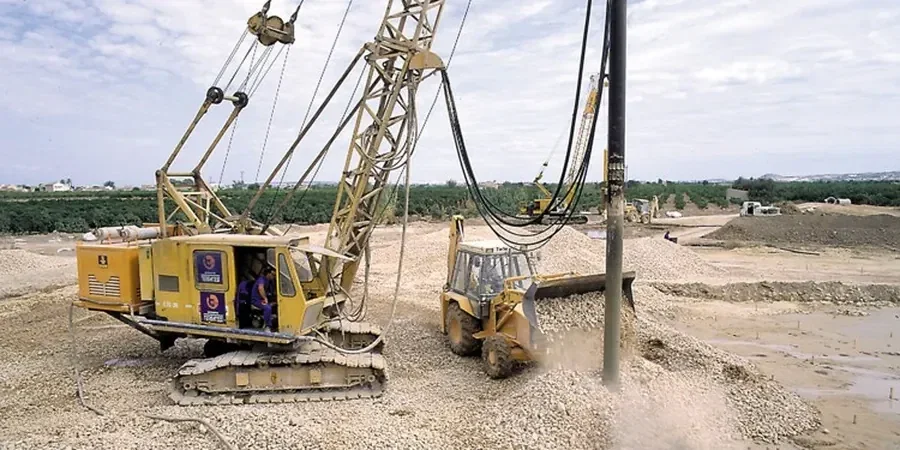

The vibroflot rig arrives on a flatbed truck, its long lance and bottom-feed hopper already assembled after the drive from the depot. In Wagga Wagga, where the Murrumbidgee River has laid down metres of soft silty clay across the floodplain, that rig becomes the most practical tool for improving ground without a massive over-excavation. We set up on sites from Bomen to Estella and feed stone through the bottom of the vibrating probe, forcing aggregate outward in compacted lifts. The result is a stiff column of well-graded crushed rock that replaces a portion of the compressible soil, shortening drainage paths and boosting bearing capacity. For warehouse slabs near the Bomen industrial precinct or approach embankments on the Olympic Highway, this method lets the project stay on grade without importing structural fill. Before committing to the column grid, we typically confirm the undrained shear strength profile with CPT testing to ensure the surrounding clay can provide adequate lateral confinement during column installation.

A well-designed stone column grid in Wagga Wagga's alluvial clays can cut settlement time from years to weeks, purely by shortening the drainage path to less than a metre.

Technical details of the service in Wagga Wagga

Wagga Wagga sits at the transition between the western slopes and the Riverina plain, and the soil profile changes fast. A site near the levee may show 6 metres of soft clay over dense sand; a site up on the clayey colluvium near Willans Hill gives you stiff residual soil within 2 metres. That variability means stone column design here is never a copy-paste exercise. In our experience, the biggest driver is the groundwater table, which often sits less than 2 metres below the surface during a wet spring. We run settlement analyses using Priebe's method and back-check with axisymmetric finite element models when the loading is eccentric. The column diameter, spacing, and depth all shift depending on whether the structure is a light industrial shed or a grain silo with 4-metre-high surcharge. We also specify a load transfer platform of well-compacted granular fill above the columns, reinforced with geogrid when differential settlement needs to stay under 25 mm. The aggregate itself matters more than many realise: we specify clean, angular crushed basalt with a LA abrasion loss below 30, sourced from local quarries near the Maragle Range, because rounded river gravel simply does not interlock the same way under vibratory compaction.

Stone Column Design in Wagga Wagga: Improving Soft Ground Beneath the Riverina

Parameter	Typical value
Typical column diameter	0.6–1.0 m
Area replacement ratio (common range)	10%–35%
Target SPT N-value within column	> 25 blows/300 mm
Aggregate size (clean crushed stone)	25–75 mm
Typical depth in Wagga floodplain	4–12 m
Load transfer platform thickness	0.3–0.8 m (geogrid-reinforced)
Design standard	AS 4678 (Earth-retaining structures)
Settlement reduction factor	2–4 (relative to untreated ground)

Critical ground factors in Wagga Wagga

The older parts of Wagga Wagga grew along the Murrumbidgee without the deep foundations we expect today. Many heritage buildings near Fitzmaurice Street sit on shallow footings that have performed adequately for decades, but that history creates a false sense of security when new development pushes onto the softer floodplain pockets. What we see most often is differential settlement between the treated and untreated portions of a slab, particularly where a stone column grid stops at a property boundary and the neighbouring structure remains on unimproved ground. The transition zone needs careful detailing. Another risk is column bulging in very soft clay with undrained shear strength below 15 kPa; here the lateral confinement is insufficient unless the area replacement ratio is increased above 30% or the design is switched to a rigid inclusion system. Poorly controlled installation can also generate excess pore pressures that temporarily reduce soil strength, so we require piezometer monitoring on sensitive sites and a defined waiting period before load testing. The team works to AS 4678 throughout, and our laboratory operates under NATA accreditation to ISO/IEC 17025 for the supporting soil classification and strength tests.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.co

Applicable standards: AS 4678:2002 Earth-retaining structures, AS 1726:2017 Geotechnical site investigations, AS 2758.1:2014 Aggregates and rock for engineering purposes, AS/NZS 1170.0:2002 Structural design actions (loading)

Our services

Our stone column work in Wagga Wagga covers the full sequence from field investigation through to post-installation verification. Each phase is calibrated to the Murrumbidgee floodplain conditions.

Design development and settlement analysis

We prepare column grid layouts, area replacement ratios, and load transfer platform details using Priebe’s method and 2D/3D finite element analysis calibrated to site-specific CPT and laboratory consolidation data.

Installation supervision and quality control

Full-time supervision during wet-feed or bottom-feed vibro-replacement, including recording depth, amperage, and stone consumption per column, plus post-installation modulus verification with plate load tests.

Integrated ground improvement for embankments

For road approaches and levee upgrades near the Murrumbidgee, we combine stone columns with staged construction and basal geogrid reinforcement to manage both settlement and slope stability under AS 4678.
